Computational Fluid Dynamics (CFD)¶

Multiple CFD applications, like OpenFOAM, Ansys CFX, Ansys Fluent and Star CCM+, are available on our systems. You will find information on cluster-specific usage of these software packages on this page. For general usage, strength and limitations, and technical details, please refer to the corresponding official documentation provided by the vendors.

OpenFOAM¶

The OpenFOAM (Open Field Operation and Manipulation) CFD Toolbox can simulate anything from complex fluid flows involving chemical reactions, turbulence and heat transfer, to solid dynamics, electromagnetics and the pricing of financial options. OpenFOAM is developed primarily by OpenCFD Ltd and is freely available and open-source, licensed under the GNU General Public License.

The command module spider OpenFOAM provides the list of installed OpenFOAM versions. In order to use OpenFOAM, it is mandatory to set the environment by sourcing the bashrc (for users running bash or ksh) or cshrc (for users running tcsh or csh) provided by OpenFOAM:

marie@login$ module load OpenFOAM/<version>
marie@login$ source $FOAM_BASH
marie@login$ # source $FOAM_CSH

Example for OpenFOAM job script

Below you find an example job script for OpenFOAM. Please, adopt the resource requirements, paths, command line, etc. to your needs and workflow. The example loads the OpenFOAM module from the module release release/24.04..

#!/bin/bash
#SBATCH --time=12:00:00                  # walltime
#SBATCH --ntasks=60                      # number of processor cores (i.e. tasks)
#SBATCH --mem-per-cpu=1800M              # memory per CPU core
#SBATCH --job-name="Test"                # job name
#SBATCH --mail-user=marie@tu-dresden.de  # email address (only tu-dresden)
#SBATCH --mail-type=ALL

module load release/24.04  GCC/12.3.0  OpenMPI/4.1.5 OpenFOAM/12
source $FOAM_BASH

OUTFILE="Output"

cd /horse/ws/marie-number_crunch         # work directory using workspace
srun pimpleFoam -parallel > "$OUTFILE"

Ansys CFX¶

Ansys CFX is a powerful finite-volume-based program package for modeling general fluid flow in complex geometries. The main components of the CFX package are the flow solver cfx5solve, the geometry and mesh generator cfx5pre, and the post-processor cfx5post.

Example for CFX job script:

#!/bin/bash
#SBATCH --time=12:00:00                  # walltime
#SBATCH --ntasks=4                       # number of processor cores (i.e. tasks)
#SBATCH --mem-per-cpu=1900M              # memory per CPU core
#SBATCH --mail-user=marie@tu-dresden.de  # email address (only tu-dresden)
#SBATCH --mail-type=ALL

module load ANSYS

cd /horse/ws/marie-number_crunch         # work directory using workspace
cfx-parallel.sh -double -def StaticMixer.def

Ansys Fluent¶

Fluent needs the host names and can be run in parallel like this:

#!/bin/bash
#SBATCH --time=12:00:00                  # walltime
#SBATCH --ntasks=4                       # number of processor cores (i.e. tasks)
#SBATCH --mem-per-cpu=1900M              # memory per CPU core
#SBATCH --mail-user=marie@tu-dresden.de  # email address (only tu-dresden)
#SBATCH --mail-type=ALL

module purge
module load release/23.10
module load ANSYS/2023R1

fluent 2ddp -t$SLURM_NTASKS -g -mpi=openmpi -pinfiniband -cnf=$(/software/util/slurm/bin/create_rankfile -f CCM) -i input.jou

To use fluent interactively, please try:

marie@login$ module load ANSYS/19.2
marie@login$ srun --nodes=1 --cpus-per-task=4 --time=1:00:00 --pty --x11=first bash
marie@compute$ fluent &

Ansys Fluent Parallel Settings¶

Ansys Fluent saves your latest settings which can resulst in incorrect configurations when switching between clusters and between batch and interactive mode. This is particularly true of the parallel settings when you execute Ansys Fluent in interactive mode (GUI) using the Vis cluster via Desktop Cloud Visualization and Graphical Applications with WebVNC.

To adjust the settings for Vis cluster, you need to open the Ansys Fluent Launcher menu and adjust them according to your resource allocation:

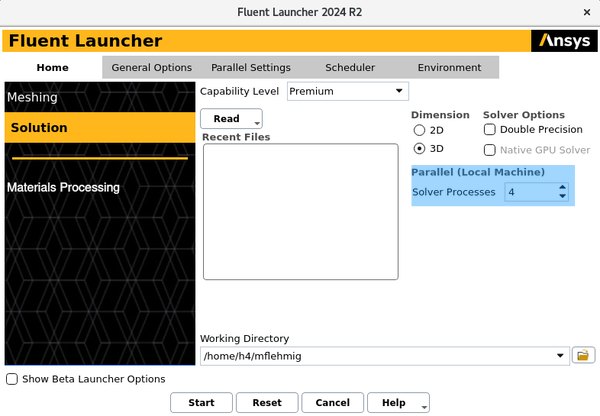

Home menu

Adjust the Solver Processes: <n> to the number of CPUs from DCV dialog.

Solver Processes

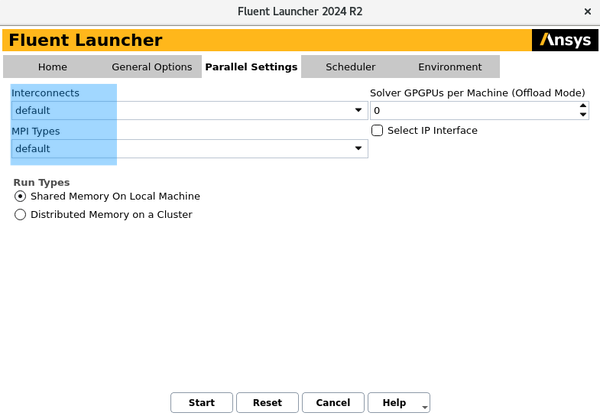

Parallel Settings menu

Set Interconnects: default and MPI Types: default.

Alternative text

STAR-CCM+¶

Note

You have to use your own license in order to run STAR-CCM+ on ZIH systems, so you have to specify the parameters -licpath and -podkey, see the example below.

Our installation provides a script create_rankfile -f CCM that generates a host list from the Slurm job environment that can be passed to starccm+, enabling it to run across multiple nodes.

Example

#!/bin/bash
#SBATCH --time=12:00:00                  # walltime
#SBATCH --ntasks=32                      # number of processor cores (i.e. tasks)
#SBATCH --mem-per-cpu=2500M              # memory per CPU core
#SBATCH --mail-user=marie@tu-dresden.de  # email address (only tu-dresden)
#SBATCH --mail-type=ALL

module load STAR-CCM+

LICPATH="port@host"
PODKEY="your podkey"
INPUT_FILE="your_simulation.sim"
starccm+ -collab -rsh ssh -cpubind off -np $SLURM_NTASKS -on $(/sw/taurus/tools/slurmtools/default/bin/create_rankfile -f CCM) -batch -power -licpath $LICPATH -podkey $PODKEY $INPUT_FILE

Note

The software path of the script create_rankfile -f CCM is different on the new HPC system Barnard.

Example

#!/bin/bash
#SBATCH --time=12:00:00                  # walltime
#SBATCH --ntasks=32                      # number of processor cores (i.e. tasks)
#SBATCH --mem-per-cpu=2500M              # memory per CPU core
#SBATCH --mail-user=marie@tu-dresden.de  # email address (only tu-dresden)
#SBATCH --mail-type=ALL

module load STAR-CCM+

LICPATH="port@host"
PODKEY="your podkey"
INPUT_FILE="your_simulation.sim"
starccm+ -collab -rsh ssh -cpubind off -np $SLURM_NTASKS -on $(/software/util/slurm/bin/create_rankfile -f CCM) -batch -power -licpath $LICPATH -podkey $PODKEY $INPUT_FILE
