Visualization¶

ParaView¶

ParaView is an open-source, multi-platform data analysis and visualization application. The ParaView package comprises different tools which are designed to meet interactive, batch and in-situ workflows.

ParaView can be used in interactive mode as well as in batch mode. Both modes are documented in more details in the following subsections.

Warning

Without loss of generality, we stick to a certain ParaView module (from a certain module release) in the following documentation and provided examples. Do not blind copy the examples. Furthermore, please adopt the commands to your needs, e.g., the concrete ParaView module you want to use.

The same holds for the cluster used in the documentation and examples. The documentation refers to the cluster Barnard. If you want to use ParaView on one of the other clusters, this documentation should hold too.

ParaView Modules¶

ParaView is available through the module system. The following command lists the available versions

marie@login$ module spider ParaView
    [...]
        Versions:
            ParaView/5.10.1-mpi
            ParaView/5.11.1-mpi
            ParaView/5.11.2
    [...]

Please note, that not all ParaView modules are available in all module environments. The command module spider <module-name> will show you, how to load a certain ParaView module.

Example on how to load a ParaView module

For example, to obtain information on how to properly load the module ParaView/5.10.1-mpi, you need to invoke the module spider command as follows:

marie@login$ module spider ParaView/5.10.1-mpi
[...]
You will need to load all module(s) on any one of the lines below before the "ParaView/5.10.1-mpi" module is available to load.

  release/23.04  GCC/11.3.0  OpenMPI/4.1.4
  release/23.10  GCC/11.3.0  OpenMPI/4.1.4
[...]

Obviously, the ParaView/5.10.1-mpi module is available within two releases and depends in both cases on the two modules GCC/11.3.0 and OpenMPI/4.1.4. Without loss of generality, a valid command to load ParaView/5.10.1-mpi is

marie@login$ module load release/23.10 GCC/11.3.0 OpenMPI/4.1.4

Interactive Mode¶

There are two different ways of using ParaView interactively on ZIH systems, which are described in more details in the following subsections:

GUI via NICE DCV
Client-Server mode with MPI-parallel off-screen-rendering

Using the GUI via NICE DCV¶

This option provides hardware accelerated OpenGL and might provide the best performance and smooth handling. First, you need to open a DCV session on the Visualization cluster (use the Jupyter spawner and choose one of the VIS job profiles, then click on the DCV tile in the lower section named Other). Please find further instructions on how to start DCV on the virtual desktops page. In your virtual desktop session, start a terminal (right-click on desktop -> Terminal or Activities -> Terminal), then load the ParaView module as usual and start the GUI:

marie@dcv$ module load release/23.10 GCC/11.3.0 OpenMPI/4.1.4 ParaView/5.11.1-mpi
marie@dcv$ paraview

Since your DCV session already runs inside a job, which has been scheduled to a compute node, no srun command is necessary here.

Using Client-Server Mode with MPI-parallel Offscreen-Rendering¶

ParaView has a built-in client-server architecture, where you run the GUI locally on your local workstation and connect to a ParaView server instance (so-called pvserver) on a cluster. The pvserver performs the computationally intensive rendering.

Note

The ParaView version of the client, i.e., your workstation, needs to be of the same version as the server.

Otherwise, you will encounter the error message "paraview client/server version hash mismatch" when connection.

The pvserver can be run in parallel using MPI. To do so, load the desired ParaView module and start the pvserver executable in offscreen rendering mode within an interactive allocation via srun.

Start pvserver

Here, we ask for 8 MPI tasks on one node for 4 hours within an interactive allocation. Please adopt the time limit and ressources to your needs.

marie@login$ module load release/23.10 GCC/11.3.0 OpenMPI/4.1.4 ParaView/5.11.1-mpi
marie@login$ srun --nodes=1 --ntasks=8 --mem-per-cpu=2500 --time=04:00:00 --pty pvserver --force-offscreen-rendering
srun: job 1730359 queued and waiting for resources
srun: job 1730359 has been allocated resources
Waiting for client...
Connection URL: cs://n1179:11111
Accepting connection(s): n1179:11111

Once the resources are allocated, the pvserver is started in parallel and connection information are printed.

Custom port

If the default port 11111 is already in use, an alternative or custom port can be specified via the commandline option -sp=<PORT> to pvserver.

The output from pvserver contains the node name which your job and server runs on. However, since the node names of the cluster are not present in the public domain name system (only cluster-internally), you cannot just use this line as-is for connection with your client. Instead, you need to establish a so-called forward SSH tunnel to your local host. You first have to resolve the name to an IP address on ZIH systems using host in another SSH session. Then, the SSH tunnel can be created from your workstation. The following example will depict both steps: Resolve the IP of the compute node and finally create a forward SSH tunnel to local host on port 22222 (or what ever port is preferred).

SSH tunnel

marie@login$ host n1179
n1179.barnard.hpc.tu-dresden.de has address 172.24.64.189
marie@login$ exit
Connection to login2.barnard.hpc.tu-dresden.de closed.
marie@local$ ssh -L 22222:172.24.64.189:11111 barnard

SSH command

The previous SSH command requires that you have already set up your SSH configuration to Barnard as documented on our SSH configuration page.

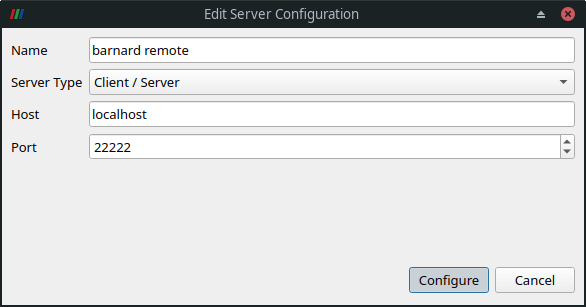

The final step is to start ParaView locally on your own machine and configure the connection to the remote server. Click File > Connect to bring up the Choose Server Configuration dialog. When you open this dialog for the first time, you need to add a server. Click on Add Server and configure as follows:

In the Configure dialog, choose Startup Type: Manual and Save. Then, you can connect to the remote pvserver via Connect button.

A successful connection is displayed by a client connected message displayed on the pvserver process terminal, and within ParaView's Pipeline Browser (instead of it saying builtin). You now are connected to the pvserver running on a compute node at ZIH systems and can open files from its filesystems.

Caveats¶

Connecting to the compute nodes will only work when you are inside the TU Dresden campus network, because otherwise, the private networks 172.24.* will not be routed. That's why you either need to use VPN (recommended) or an SSH tunnel.

SSH Tunnel

When coming via the ZIH login gateway (login1.zih.tu-dresden.de), you can use SSH tunneling. For the example IP address from above, this could look like the following:

marie@local$ ssh -f -N -L11111:172.24.64.189:11111 <zihlogin>@login1.zih.tu-dresden.de

This command opens the port 11111 locally and tunnels it via login1 to the pvserver running on the compute node. Note that you then must instruct your local ParaView client to connect to host localhost instead. The recommendation, though, is to use VPN, which makes this extra step unnecessary.

Batch Mode (`pvbatch`)¶

ParaView can run in batch mode, i.e., without opening the ParaView GUI, executing a Python script. This way, common visualization tasks can be automated. There are two Python interfaces: pvpython and pvbatch. The interface pvbatch only accepts commands from input scripts, and it will run in parallel, if it was built using MPI.

Note

ParaView is shipped with a prebuild MPI library and pvbatch has to be invoked using this very mpiexec command. Make sure to not use srun or mpiexec from another MPI module, i.e., check what mpiexec is in the path:

marie@login$ module load release/23.10 GCC/11.3.0 OpenMPI/4.1.4 ParaView/5.11.1-mpi
marie@login$ which mpiexec
/software/rapids/r23.10/OpenMPI/4.1.4-GCC-11.3.0/bin/mpiexec

The resources for the MPI processes have to be allocated via the batch system option --cpus-per-task=<NUM> (not --ntasks=<NUM>, as it would be usual for MPI processes). It might be valuable in terms of runtime to bind/pin the MPI processes to hardware. A convenient option is --bind-to core. All other options can be obtained by

marie@login$ mpiexec --help binding

or from mpich wiki.

In the following, we provide two examples on how to use pvbatch from within a job file and an interactive allocation.

Example job file

#!/bin/bash

#SBATCH --nodes=1
#SBATCH --cpus-per-task=12
#SBATCH --time=01:00:00

# Make sure to only use ParaView
module purge
module load release/23.10 GCC/11.3.0 OpenMPI/4.1.4 ParaView/5.11.1-mpi

pvbatch --mpi --force-offscreen-rendering pvbatch-script.py

Example of interactive allocation using salloc

marie@login$ salloc --nodes=1 --cpus-per-task=16 --time=01:00:00 bash
salloc: Pending job allocation 336202
salloc: job 336202 queued and waiting for resources
salloc: job 336202 has been allocated resources
[...]

# Make sure to only use ParaView
marie@compute$ module purge
marie@compute$ module load release/23.10 GCC/11.3.0 OpenMPI/4.1.4 ParaView/5.11.1-mpi

# Go to working directory, e.g., your workspace
marie@compute$ cd /path/to/workspace

# Execute pvbatch using 16 MPI processes in parallel on allocated resources
marie@compute$ pvbatch --mpi --force-offscreen-rendering pvbatch-script.py

Using GPUs¶

ParaView pvbatch can render offscreen through the Native Platform Interface (EGL) on the graphics cards (GPUs) specified by the device index. For that, make sure to use a cluster with GPUs (e.g. Alpha, Power9; see hardware overview), and pass the option --displays $CUDA_VISIBLE_DEVICES to pvbatch.
